Running the ingest_obs_cf configuration

The ingest_obs_cf downloads raw obs files from a remote server, converts them to IODA format with the ioda-converters, and stores the IODA files in R2D2.

As described in 2d2_ingest suite, ingest_obs_cf is not a separate suite directory. It is a configuration of the shared r2d2_ingest suite that sets download_convert_pipeline: true, which selects the download + convert + ingest branch of the shared flow.cylc.

Here is a list of R2D2 keys used for item='observation' (see r2d2_ingest suite for the full item reference):

import r2d2

# r2d2.fetch to get the data from R2D2 or r2d2.store to save the data on R2D2
r2d2.fetch(
  item='observation',
  observation_type='tempo_no2_tropo',
  provider='nasa_v4', # use this key to distinguish different versions of a retrieval, such as `nasa_v3` or `nasa_v4` for TEMPO

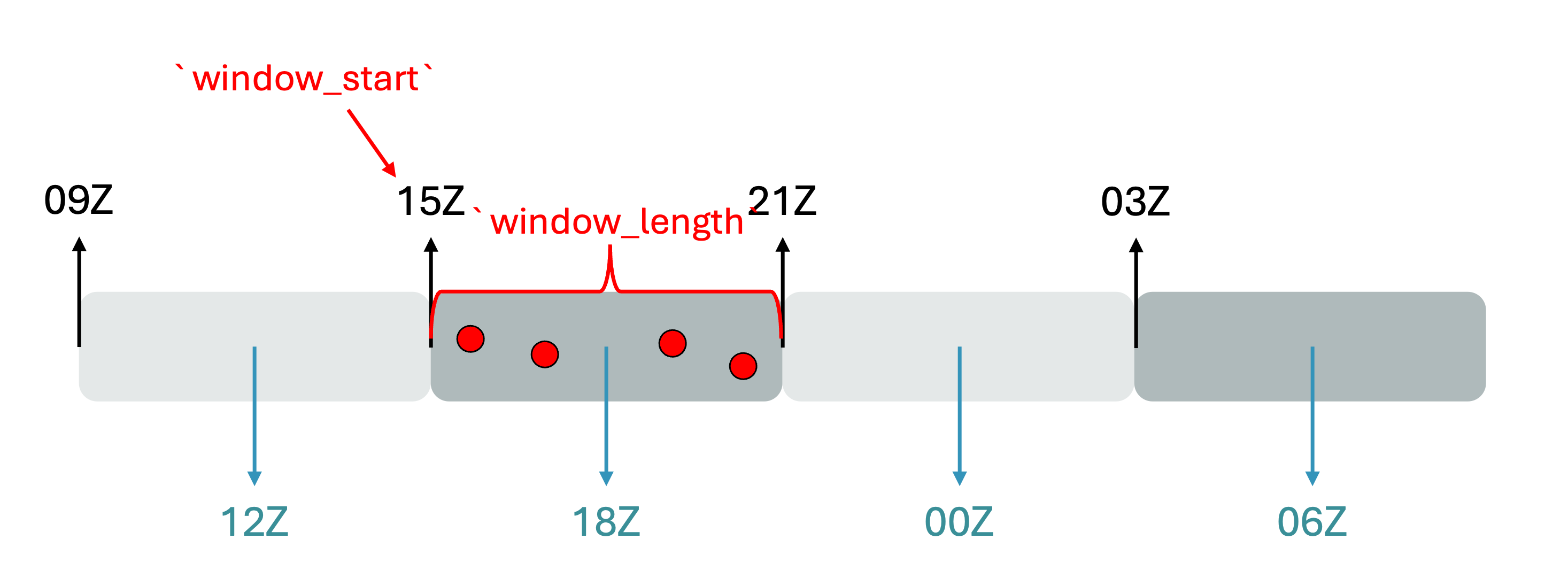

  window_start='20251015T210000Z',
  window_length='PT6H',
  target_file='obs_tempo_no2_tropo.nc4', # save the file under target_file name
  file_extension='nc4'
  )

Configuring ingest_obs_cf¶

The ingest_obs_cf block in suite_config.py includes the default values. To configure and customize the experiment use an override file. See Getting Started for more details.

experiment_id: training_ingest_obs # Swell experiment_id, this doesn't impact R2D2

start_cycle_point: '2025-10-10T00:00:00Z'
final_cycle_point: '2025-10-10T18:00:00Z'
model_components:
  - geos_cf
download_convert_pipeline: true # run ioda converter

models:
  geos_cf:
    jedi_build_method: use_existing
    window_length: PT6H

    obs_to_download:
      - tempo_no2_tropo
    obs_to_ingest:
      - tempo_no2_tropo
    observation_providers:
      tempo_no2_tropo: nasa_v4

    # Directory containing ioda-converter scripts if you're using something different than develop
    converter_path: /discover/nobackup/projects/jcsda/s2127/maryamao/jedi-bundle/build-intel-1.9/bin/

    # Set true for preview and false for actually saving the files to r2d2
    dry_run: false
    store_as_symlink: false # keep it false for obs

Knobs to control what to download, convert, and ingest¶

For each observation listed under obs_to_download and obs_to_ingest there must be an equivalent YAML file in src/swell/configuration/jedi/interfaces/geos_cf, under download_observations, convert_observations, and inget_observations.

• download_observations/<obs>.yaml selects the remote source and granule search.

• convert_observations/<obs>.yaml selects the converter, output name, and converter flags.

• ingest_observations/<obs>.yaml identifies the converted file to store in R2D2.

Creating and running the ingest_obs_cf¶

The steps are the same as any other suite (see Running the hofx_cf suite):

1. Load the SWELL environment. Depending on the data host you may need to set your Earthdata credentials in ~/.netrc. Follow instructions here.

2. Create the experiment by running swell create ingest_obs_cf -o override_obs.yaml. This will print the launch command, e.g.:

SwellCreateExperiment:
SwellCreateExperiment: Experiment successfully installed. To launch experiment use:
SwellCreateExperiment:
SwellCreateExperiment:   swell launch /discover/nobackup/mabdiosk/SwellExperiments/swell-ingest_obs_cf/swell-ingest_obs_cf-suite
SwellCreateExperiment:

Here is an example of what is in an experiment directory:

<experiment_root>/<experiment_id>/
├── configuration/
│   └── jedi/
│       └── interfaces/
│           └── geos_cf/
│               ├── download_observations/    ← where/how to get raw granules
│               ├── convert_observations/     ← how to run the IODA converter
│               ├── ingest_observations/      ← what to store in R2D2
│               ├── observations/             ← JEDI obs-space YAML templates
│               └── model/
└── <experiment_id>-suite/
    ├── flow.cylc
    ├── experiment.yaml
    └── modules

3. Launch it with swell launch <path_to_suite_directory> using the path printed by swell create.

Tasks in ingest_obs_cf¶

With download_convert_pipeline: True, the suite runs these tasks:

Only once:

• CloneJedi

• BuildJediByLinking

• BuildJedi

Each cycle:

• DownloadObs

• ConvertObsToIoda

• IngestObs

What each task does¶

• DownloadObs — For each obs in obs_to_download, reads download_observations/<obs_name>.yaml (examples here) and fetches the raw files from a remote server via https (scraping a directory listing, auth via ~/.netrc) or the NASA cmr API. Raw files land in <experiment_root>/<experiment_id>/run/<cycle_dir>/geos_cf/download/<obs_name>/.

• ConvertObsToIoda — For each obs, reads convert_observations/<obs_name>.yaml (examples here), gathers the raw files from <experiment_root>/<experiment_id>/run/<cycle_dir>/geos_cf/download/<obs_name>/, and runs the ioda-converter script (from converter_path). The IODA output is written to <experiment_root>/<experiment_id>/run/<cycle_dir>/geos_cf/ioda/<obs_name>/.

• IngestObs — Reads per-observation metadata from configuration/jedi/interfaces/<model>/ingest_observations/<obs_name>.yaml (examples here), resolves the file path for the cycle, and stores the file in R2D2 as an observation item (keyed by provider, observation type, file extension, and DA window, etc.).

All of DownloadObs, ConvertObsToIoda, and IngestObs honor dry_run: true, in which case they log what they would do without touching the network or R2D2.

Exploring log and run directories¶

Same layout as other suites (see Running the hofx_cf suite):

• Run directory — per cycle/model under <experiment_root>/<experiment_id>/run/<YYYYMMDDTHHMMSSZ>/<model_component>/. For this pipeline that includes download/<obs_name>/ (raw files) and ioda/<obs_name>/ (converted IODA files).

• Log directory — cylc job logs under ~/cylc-run/<experiment_name>/log/job/<cycle_point>/<task_name>/<submit_num>/ with job.out and job.err. This is the first place to look when DownloadObs (network) or ConvertObsToIoda (converter) fails.

Final output¶

The deliverable is IODA-format observation files registered/stored in R2D2. IngestObs calls r2d2.store(item='observation', observation_type=<obs_name>, ...) for the current cycle’s window, so after a successful run the observations are available in R2D2 for any suite (e.g. hofx_cf’s GetObservations) to r2d2.fetch by provider, observation type, file extension, and window.

Set dry_run: true to validate the pipeline end-to-end without writing anything to R2D2.
